Ductile iron articulated protection pipe for cable

PRODUCT > Ductile Iron articulated pipes > Ductile iron articulated protection pipe for cable

Ductile iron articulated protection pipe for cable

Our ductile Articulated Pipes are made highly durable and adhere to International Standards. The ductile Articulated Pipes are designed in-house and are subject to rigorous quality and durability testing to ensure the highest quality and durability. We can design and manufacture different size of Articulated Pipes to suit different cable size with minimum bending radius requirements.
shared:

Ductile iron articulated protection pipe for cable :

Our has been supplying ductile Articulated Pipes for cable or Optical Cable protection near the shore or on the beach.

Our ductile Articulated Pipes are made highly durable and adhere to International Standards. The ductile Articulated Pipes are designed in-house and are subject to rigorous quality and durability testing to ensure the highest quality and durability. We can design and manufacture different size of Articulated Pipes to suit different cable size with minimum bending radius requirements.


Product description:

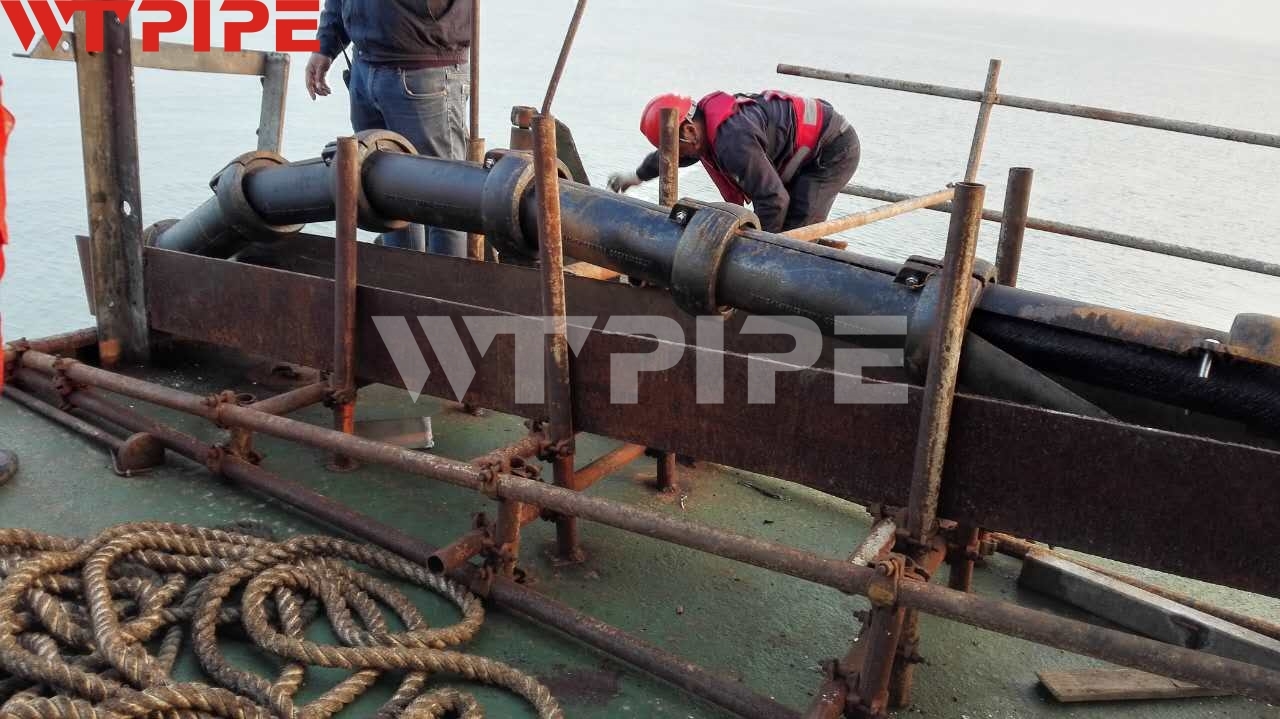

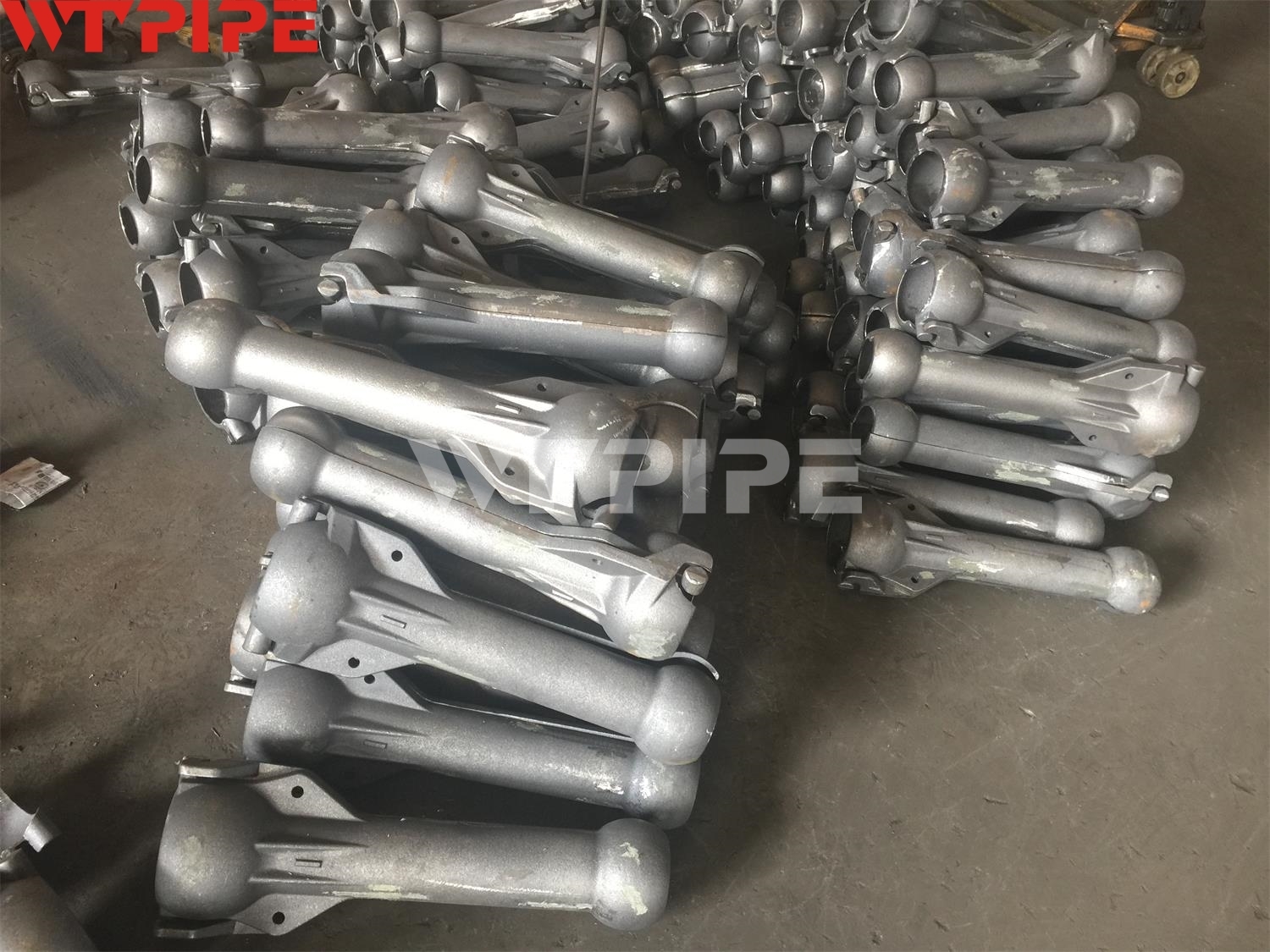

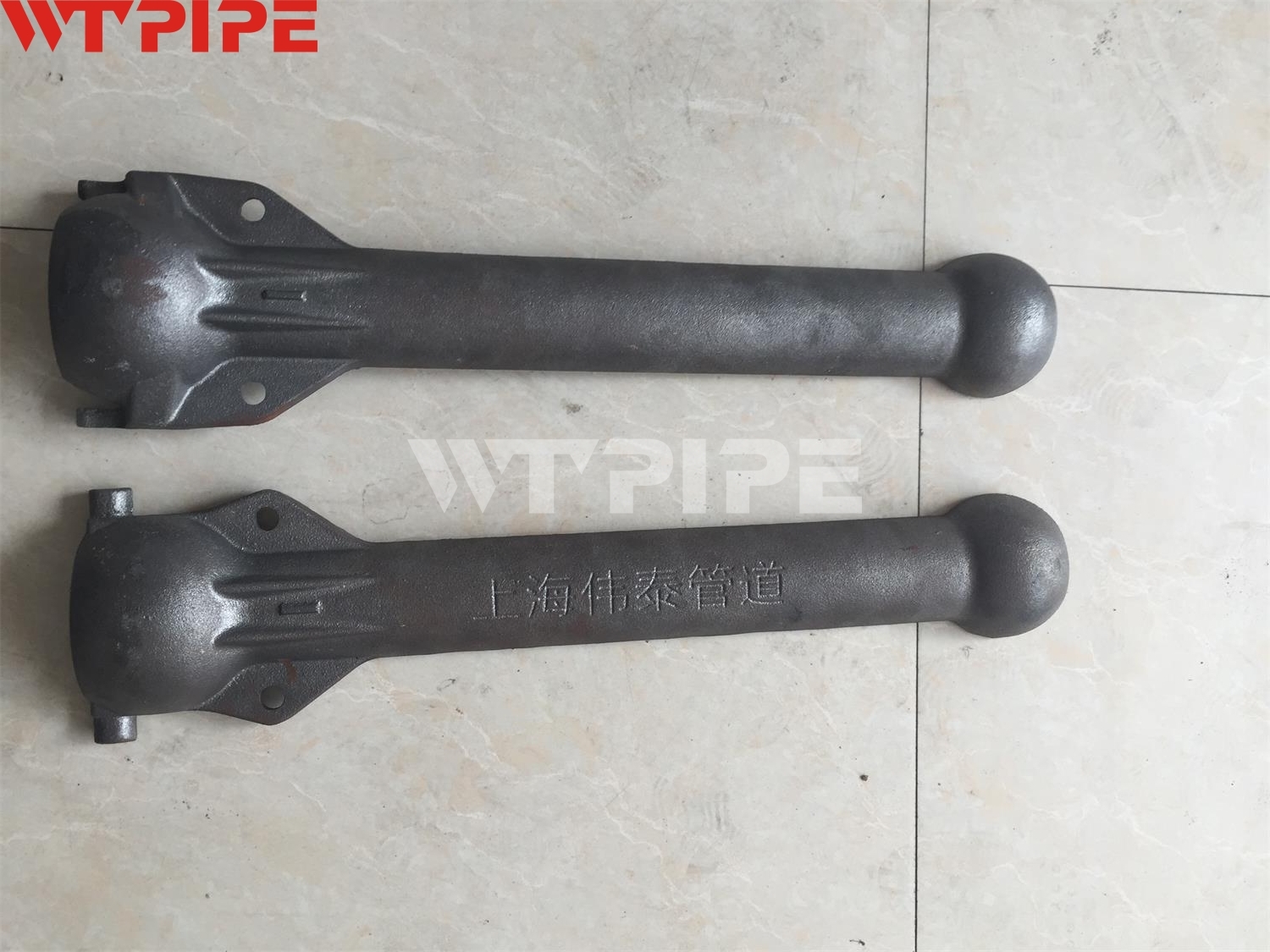

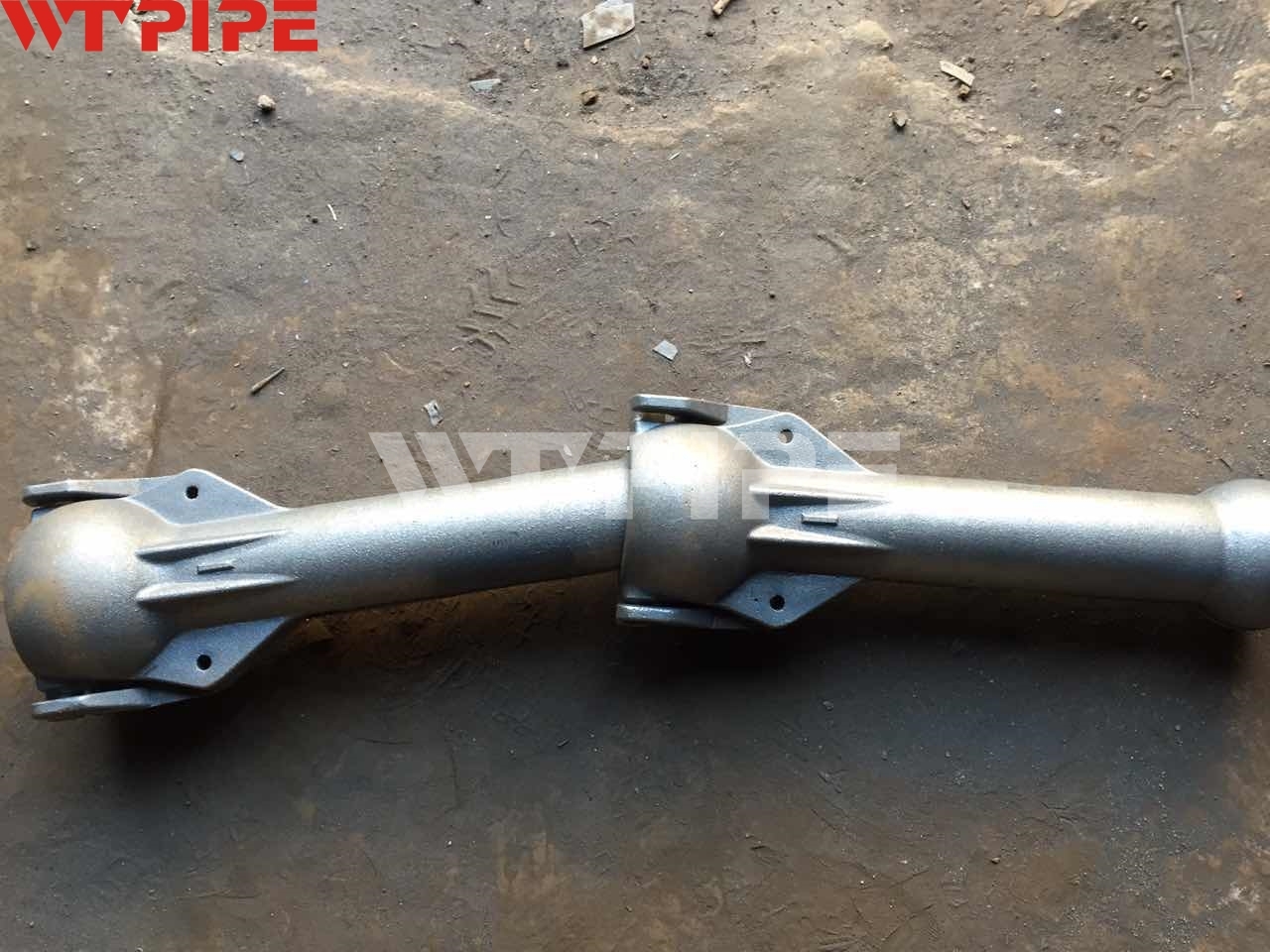

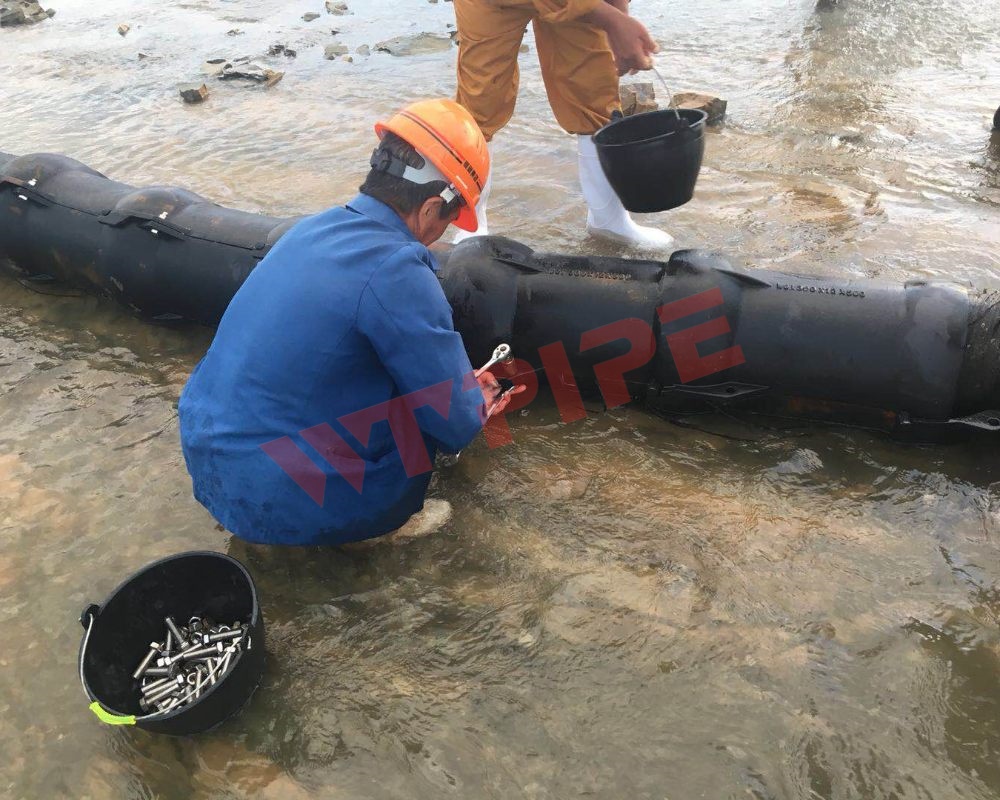

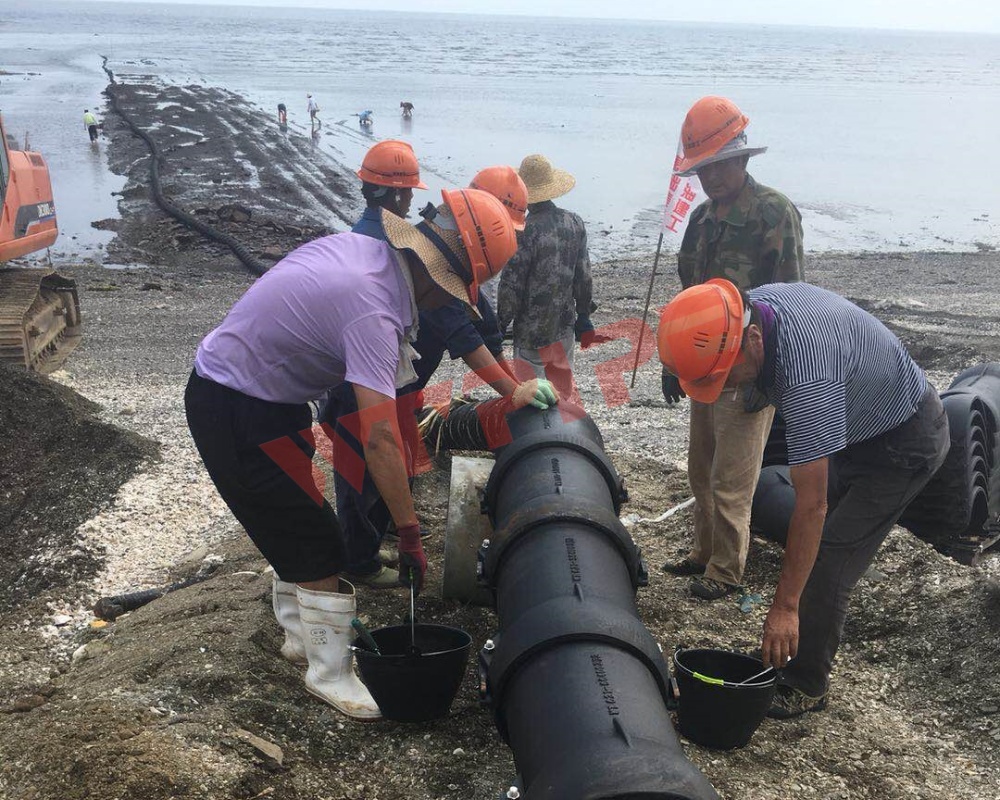

The submarine cable protectors are formed out of two identical half-shells which form a self-locking articulated pipe. For a quick installation the Cable Protection System can be installed boltless, It is also possible to use bolt to increase strength further,There are various structures to choose from.Protectorshell articulated pipe is manufactured from ductile iron which retains the corrosion resistance of traditional cast iron but is far stronger. The Cable Protection System has been designed as a simple and cost effective cable protection system for areas where conventional burial or trenching methods prove to be uneconomical and/or not achievable due to bottom conditions. During installation can either be fitted directly to the submarine product and floated-out or can alternatively be installed by divers once the submarine product has already been laid.

Our ductile Articulated Pipes are made highly durable.The ductile Articulated Pipes are designed in-house and are subject to rigorous quality and durability testing to ensure the highest quality and durability.


Ductile cast iron cable protection system used for:

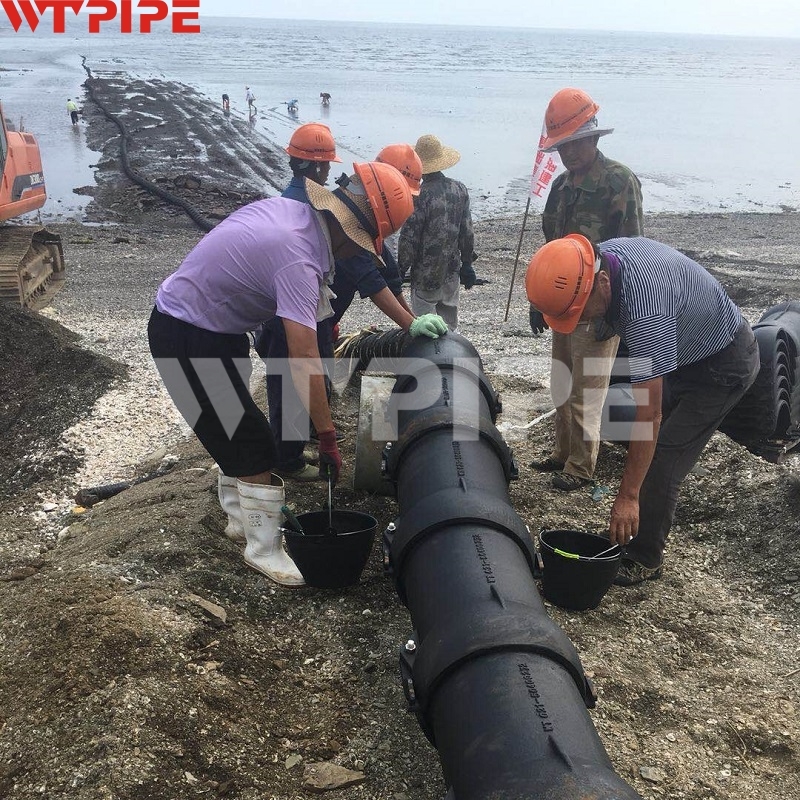

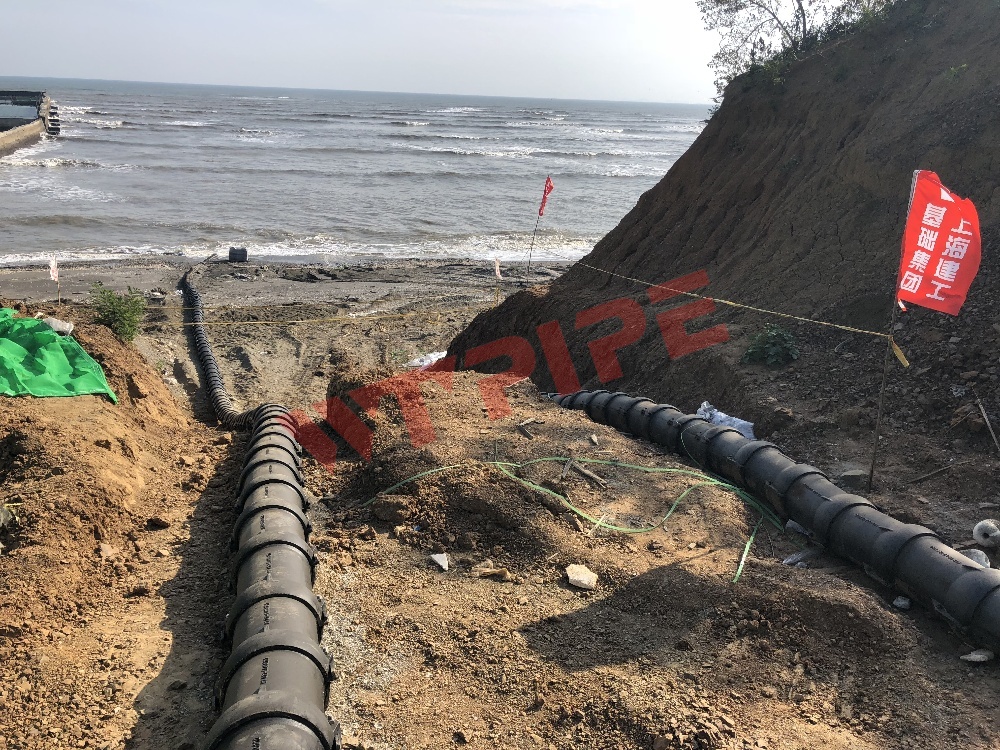

Protection of Power Cables\Protection of Telecom Cables\Protection of Optical Cable\Protection of Water Pipes\Typical installation locations include but are not limited to shore end, subsea crossings and areas with extreme environmental conditions, such as areas with rock formations, coral reefs and coastlines which are subject to severe erosion.


Features:

Split Design - Ductile cast iron half shells\Easy handling and fast assembly\Well tested strong locking mechanism - Do not require bolting!\Build in bend restriction\Avoids abrasion of the cable\Protection in free span areas\Supports rock dumping \Environment friendly - No special permits required\The Ductile Cast Iron pipes are certified with chemical and mechanical properties and are fully traceable.


Specifications:

1.Materal: Ductile Iron

2.Size: 40mm-400mm and Per Your Requirement

3.Wall thickness: 8mm-20mm and Per Your Requirement

4. Surface Treatment:Bitumen Painting

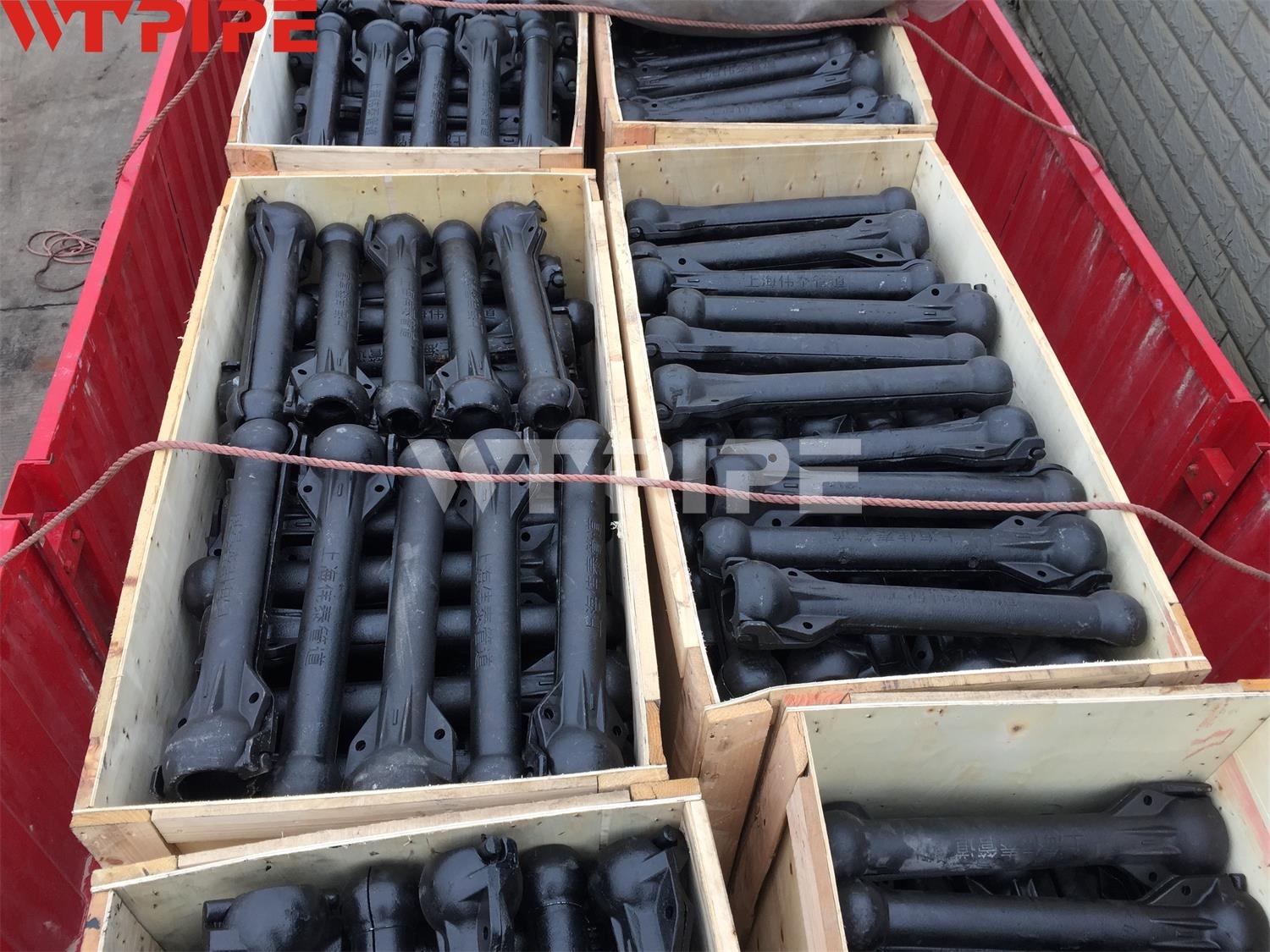

5. Package: Iron Pallet or Plywood Case


We can design and manufacture different size of Articulated Pipes to suit different cable size with minimum bending radius requirements.All products can be customized.

Articulated Cable Pipe

(Size)

Inner Diameter(mm)

Wall Thickness(mm)

Wall Thickness(mm)

Cable OD up to (mm)

WQT050×9

50

9

500

35

WQT060×9

60

9

500

45

WQT070×9

70

9

500

55

WQT077×9

77

9

500

60

WQT090×10

90

10

500

70

WQT100×10

100

10

500

80

WQT120×10

120

10

500

100

WQT130×10

130

10

500

110

WQT130×10

140

10

500

120

WQT140×12

140

12

500

120

WQT150×10

150

10

500

130

WQT155×12

155

12

500

135

WQT160×10

160

10

500

140

WQT175×10

175

10

500

155

WQT180×10

180

10

500

160

WQT200×10

200

10

500

180

WQT220×10

220

10

500

200

WQT260×10

260

10

500

240

WQT270×10

270

10

500

250

WQT280×10

280

10

500

260

WQT300×10

300

10

500

270

WQT350×10

350

10

500

300

WQT380×12

380

12

500

330

WQT400×12

400

12

500

35

Note:Can be Customized according to your requirement.
