Fiberglass articulated pipe

PRODUCT > Glass Fibre articulated pipes > Fiberglass articulated pipe

Fiberglass articulated pipe

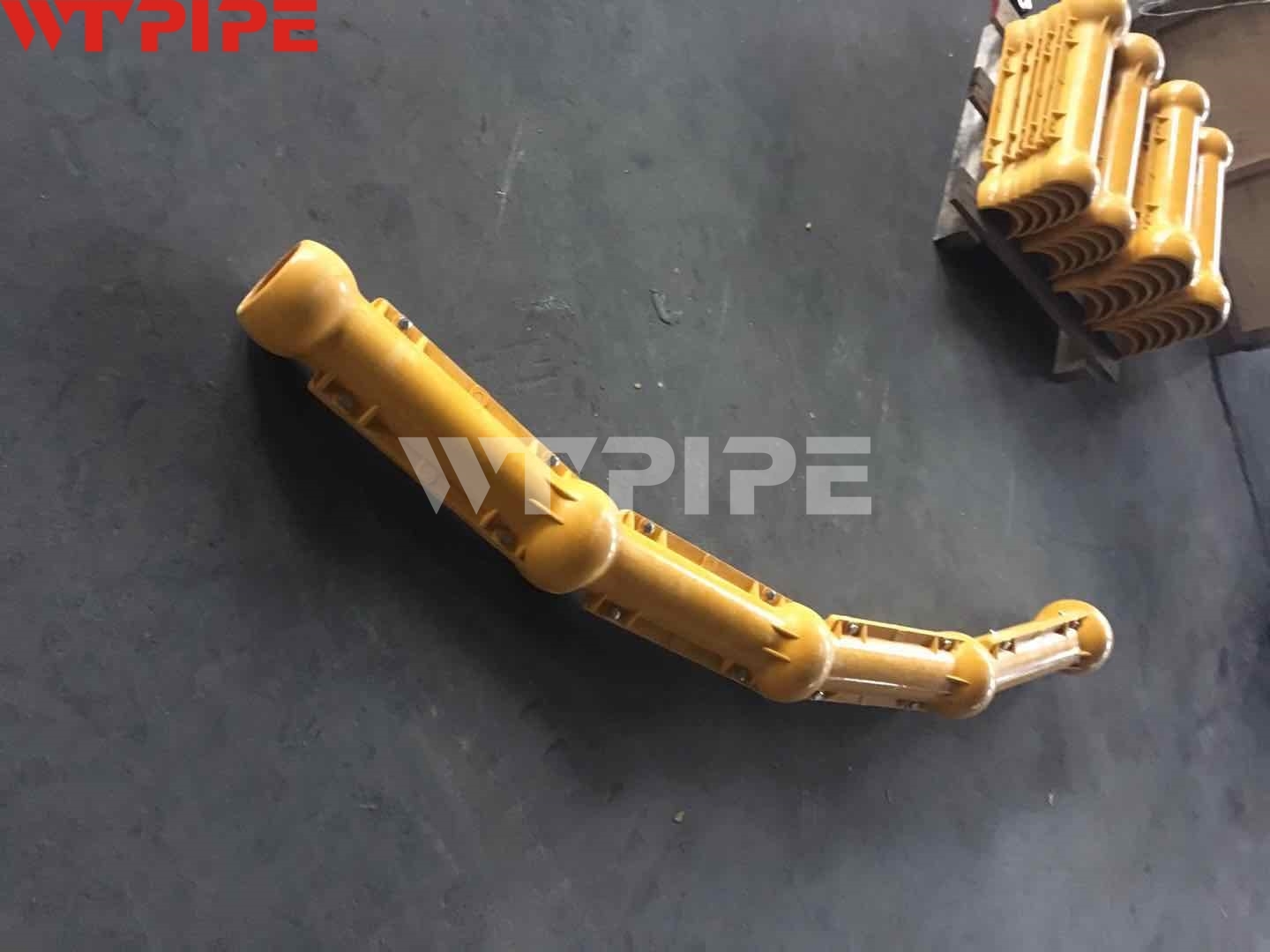

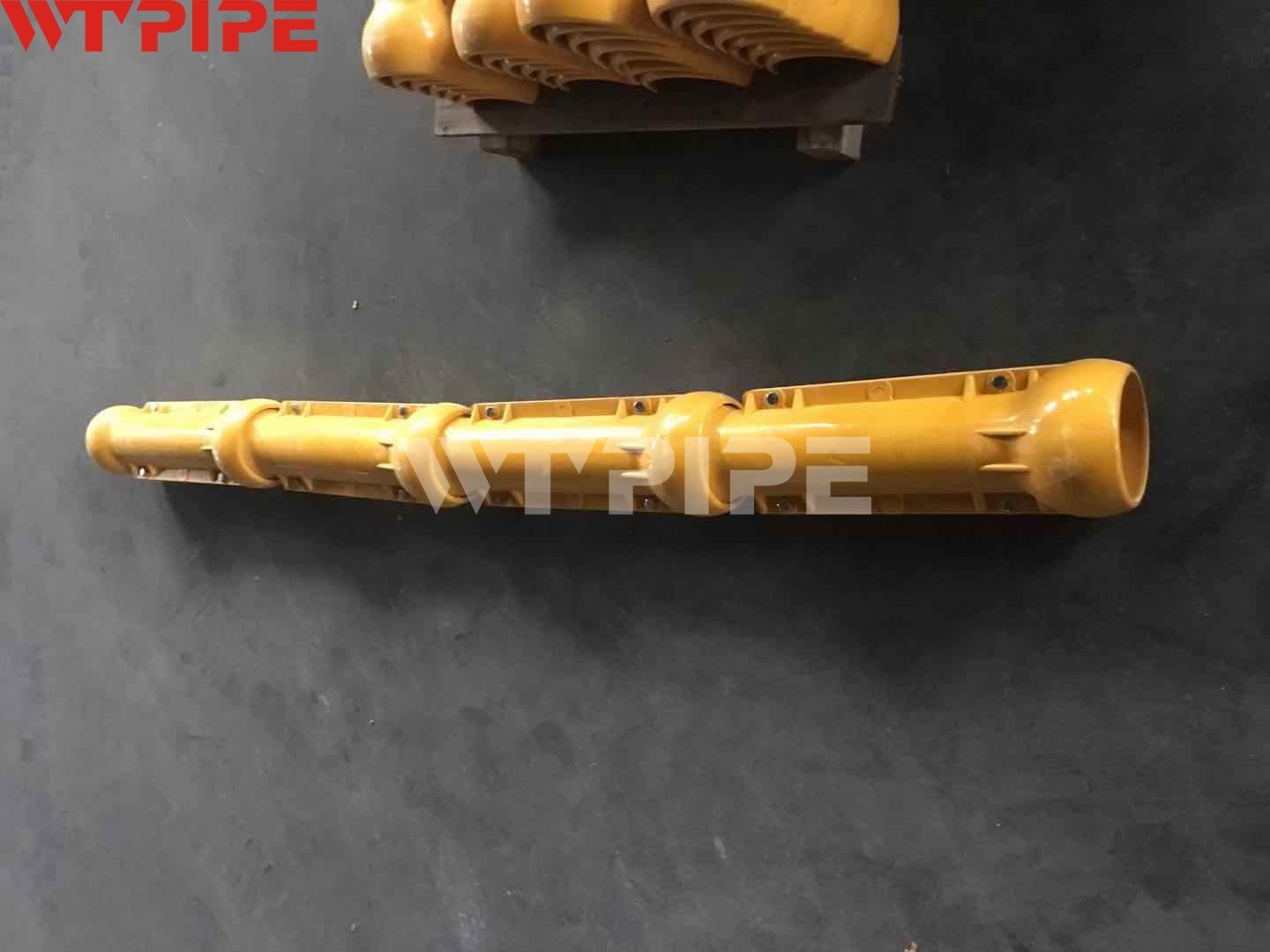

Fiberglass articulated pipe otherwise known as “Split Pipes”, form a limited flexibility protection cover over the submarine cable / flexible line, that is able to span small suspensions and is also able to conform in a reasonable fashion to the contours of the seabed, in shallow water, surf zones and over rocky seabed.
shared:

Fiberglass articulated pipe:

Fiberglass articulated pipe otherwise known as “Split Pipes”, form a limited flexibility protection cover over the submarine cable / flexible line, that is able to span small suspensions and is also able to conform in a reasonable fashion to the contours of the seabed, in shallow water, surf zones and over rocky seabed.

Articulated pipes offer excellent additional / alternative method of protection to the cable in areas where the submarine cable / flexible line cannot be buried due to hard seabed. In areas of strong current articulated can also be secured with saddle clamps / pins to the seabed at intervals considerate of the subsea conditions to secure the cable / line in position.


Fiberglass articulated Pipe/Articulated Pipes

Our has been supplying ductile Articulated Pipes for cable protection near the shore or on the beach.

Our ductile Articulated Pipes are made highly durable and adhere to International Standards. The ductile Articulated Pipes are designed in-house and are subject to rigorous quality and durability testing to ensure the highest quality and durability. We can design and manufacture different size of Articulated Pipes to suit different cable size with minimum bending radius requirements.


Fiberglass cable protection system used for:

Protection of Power Cables

Protection of Telecom Cables

Protection of Water Pipes


We can design and manufacture different size of Fiberglass articulated pipe  to suit different cable size with diameter requirements. All products can be customized.

Specification model:

Specification model

Inner diameter

Wall thickness

Cable OD up to

L

WTFRP100×8

100mm

8.0mm

80 mm





500mm to 1500mm

WTFRP160×10

160mm

10.0mm

130 mm

WTFRP200×8

200mm

8.0mm

160 mm

WTFRP250×10

250mm

10.0mm

200 mm

WTFRP280×10

280mm

10.0mm

230 mm

WTFRP350×10

350mm

10.0mm

290 mm

Enhanced
Note:Can be Customized according to your requirement.
